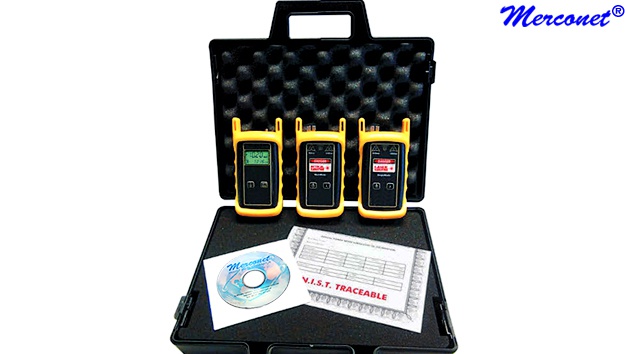

OR97 Test Set OP15/OP81/OP50 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Bestel The add to cart button will appear once you select the values above Detail Kenmerk Specificatie Content Optie Prijs Detail The OR97 is ideal for LAN managers and installers who need to do simple attenuation tests on their multimode and single-mode networks. The OR97 is an economical fiber optic power meter. It provides accurate testing of multimode and singlemode fiber cables. The 4-digit 7-segment LCD displays power readings with a resolution of 0.01dB. On-screen indicators display measurement units (dBm, dB, uW), as well as battery life. The OR97 comes configured with a 2.5mm universal connector for connection to ST or SC connectors, as well as any other fiber connector with a 2.5mm ferrule. The Dual OWL is a 850/1300nm NIST traceable multimode light source. Its dual wavelength outputs are temperature-stabilized for accurate measurements. The Zender Laser is a NIST traceable singlemode light source. Its dual wavelength outputs (1310nm/1550nm) are temperature-stabilized for accurate measurements. Three connector options are available (ST, SC, and FC). Kenmerk Economical option for quick attenuation and loss testing of both multimode and singlemode networks Easy-to-read 4-digit 7-segment LCD display Store reference values for calibrated wavelengths Intuitive 2-button interface on both units On-screen wavelength, measurement units, and low battery indicator NIST traceable Specificatie Ontvanger Measurement Range: +5 to -60 dBm Detector: InGaAs 1mm Calibrated Wavelengths: 850nm, 1300, 1310nm, 1550nm Accuracy range 0 to -45 dBm: ±0.15 dB Linearity range 0 to -45 dBm: ±0.20 dB Resolution: 0.01 dBm Battery Life: up to 250 hours Operating Temperature: -10 to 55 °C Storage Temperature: -30 to 70 °C NIST Traceable: Yes Battery Capacity Display: Yes Connector: Universeel schroef Adapter: 2.5mm ST/SC/FC Optioneel: 1.25mm LC, MU en SFF Dimension: Breedte: 7 cm (2.75”) Hoogte: 12, 5cm (4.94”) Diepte: 3,3 cm (1.28”) Weight: 154 gram Approval: EN 61326-1 EN 61010-1 Goedkeuring: CE, RoHS en WEEE Zender LED Launch Method: LED Connector: SC Center Wavelength (850nm): 850 ±30nm Center Wavelength (1300nm): 1290nm min1350nm max Spectral Width (FWHM; 850 nm): 60 nm Spectral Width (FWHM; 1300nm): 170 nm Output Power: -20.0 dBm Initial Accuracy: 0.1 dB Fiber Type: Multimode Battery Life: 40 hrs. Battery Capacity Display: Yes Operating Temperature: 0 to 55°C Storage Temperature: 0 to 75°C Dimensions: Breedte: 7 cm (2.75”) Hoogte: 12, 5cm (4.94”) Diepte: 3,3 cm (1.28”) Weight: 154 gram Approval: EN 61326-1 EN 61010-1 Goedkeuring: CE, RoHS en WEEE Zender Laser Launch Method: FP Laser Connector: ST, SC, or FC Center Wavelength (1310nm): 1310 ±30nm Center Wavelength (1550nm): 1550 ±30nm Spectral Width (FWHM): 2 nm Output Power: -10.0 dBm Initial Accuracy: 0.1 dB Fiber Type: Singlemode Battery Life: 25 hrs. Battery Capacity Display: Yes Operating Temperature: 0 to 55°C Storage Temperature: 0 to 75°C Dimensions: Breedte: 7 cm (2.75”) Hoogte: 12, 5cm (4.94”) Diepte: 3,3 cm (1.28”) Weight: 154gram Approval: EN 61326-1 EN 61010-1 Goedkeuring: CE, RoHS en WEEE Content Ontvanger Zender LED Zender Laser NIST certificaat Koffer Rubber behuizing Engelse qebruiksaanwijzing Optie 1.25mm LC, MU en SFF Adapter Prijs {product}1073|quantityfield|pricedis3|pricetax1{/product} Prijzen zijn per stuk, exclusief 21% BTW en gelden voor levering af magazijn Voorthuizen. Bij levering in Nederland of in België worden verzendkosten altijd in rekening gebracht tot maximaal EUR 25,00. Ditzelfde geldt voor expreskosten en/of rembourskosten. Bij de producten trainingen en cursussen is na het bevestigen van de cursusdatum, bij het niet verschijnen van de deelnemer(s), de verplichting ontstaan tot volledige betaling. Het volgen op een latere datum ingeval van niet verschijnen is in overleg mogelijk, maar wordt uitsluitend gezien als service. Hieruit kan geen enkel recht uit worden onttrokken.
