Detail

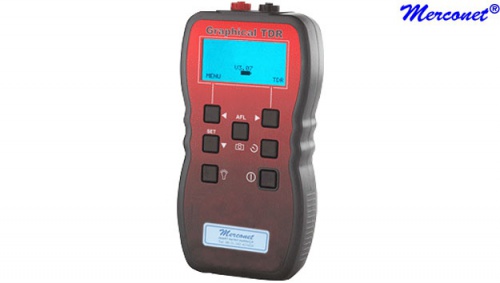

The ACE0 is a hand held Time Domain Reflectometer with 11 range scales covering the range 0-4000 meters, with a 7 mater first range scale and a 0.5 meter dead zone near and far end faults are clearly displayed on its 128x64 pixel back light Liquid Crystal Display. The Auto Fault Location key will move the cursor directly to the first event or fault, thus eliminating the need to visually interpret the wave form. When set in manual mode, the wave form may be visually scanned as on conventional TDRs. In both modes the user variable gain covering the range of default to 64 db’s may be used to magnify small events identified on the waveform. The scan lock feature will allow the user to hold the trace for closer examination. Designed for identifying and locating faults on all metallic cables with two or more insulated conductors. The ACE0 has impedance matched circuits for 25, 50, 75 and 100 ohms and with velocity of propergation settings from 1-99% (or the equivalent in feet or meters/micro second) will cover the range of power, data, communication and CCTV cables. Housed in a rugged IP54 rated ABS enclosure and weighing only 350 grams (12 ounces). Also contains a tone generator for wire tracing, for this function an optional receiver is required.
Kenmerk
- Auto Fault Location
- Rugged Palm-Top design
- Weighs less than 350 grams
- 11 Measurement Ranges up to 4000m(4km)
- 25, 50, 75 & 100 Ohm Selectable Cable Impedance
- User Variable Gain Control
- Built in Tone Generator for Pair Tracing and Identification
- Suitable for testing all Communication and Power Cables
- Environmental Protection IP54
Specificatie
Length: | 4km |
Impedance: | 25, 50, 75 & 100 Ω |
Dead zone: | 0.5 meter |
Ranges Meters Kilometers: | 7, 15, 30, 60, 120, 250, 500, 1km, 2km, 3km, 4km |
Range step: | 11 |
Accuracy: | 1% of selected range* |
Resolution: | Approximately 1% of range |
Range selection: | Manual & Automatic |
Sensitivity: | Min 3 pixel return at 4km on 0.6mm Ø, PE, TP |
Output Pulse Width: | 3 ns to 3 ms, connected to range setting |
NVP VoP Velocity Factor: | Adjustable from 1% to 99% |
Scan Rate: | 2 scans / second or scan held (not on 3km/4km range) |
Output Pulse: | 5 volts peak to peak. Into open circuit |
Tone Generator: | 810 - 1100Hz |
Connector: | 2x Banana chassis |
Display: | 64 x 128 pixel |
Backlight: | Yes |
Voltage Protection: | 250 volts AC |
Battery Life: | 60 hours continuous scanning |
Power Supply: | 6 volts 4 x 1.5 AA Alkaline cells |
Power Down: | Selectable 1, 2, 3, 5 minutes or disabled |
Operating Temperature: | -10° / 50°C |
Storage Temperature: | -20° / 70°C |
Dimensions: | 165 x 90 x 37 mm |
Weight: | 350 grams |
Standards: | IEC 61010-1 |
| EN 60950 |
| ISO9001 |
EMC BS/EN: | 61326-1 |
Water/Dust Proof: | IP54 |
Goedkeuring: | CE, RoHS en WEEE |
* Measurement accuracy of <+/- 1% assumes the instrument
setting for velocity of propergation (Vp) of the cable under test to be accurately set, homogeneity of the Vp along the cable length,
and accurate cursor positioning. |
Content
- Main unit
- AJJ4 Tas ACE0/ACE1/ACE2/GT21/GT22
- AJJ3 Banaan naar krokodilbek ACE0/ACE1/ACE2
- Engels Gebruiksaanwijzing
Optie
- CU03 Cursus analoge telefonie en ondergrondse netwerken
- KO10 Instrumentkoffer medium (105 mm)
- ON80 Ontvanger 9001
Prijs
896,61 € (741,00 € exclusief BTW) per stuk
