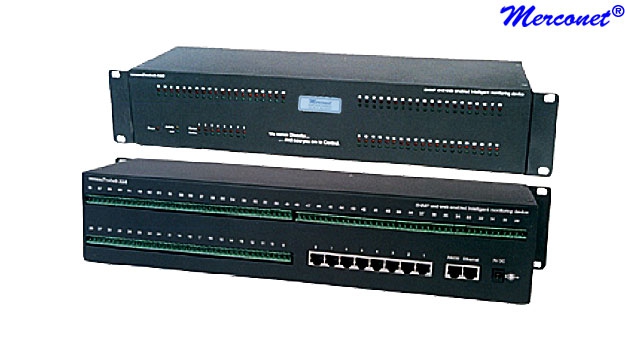

DL47 Multifunctionele datalogger 8+60 in



De knop Toevoegen aan winkelwagentje verschijnt zodra u de bovenstaande waarden selecteert
Detail

The core of the DL47 is the sensorProbe8, which is then married with the 60 Dry Contact System. This offers support for remote monitoring and management of a wide range of external devices. The DL47 system enables connection and monitoring of devices like HVAC Systems, Security Equipment, UPS, Generators, Industrial Equipment and much more. The DL47 embedded web server makes the addition of these devices easy. The DL47 comes with 8 autoSense Intelligent sensor ports, for connecting a wide range of our intelligent sensors. An additional 60x 2-wire dry contact ports are provided giving a total of up to 68 dry contact ports. The specially designed 2 wire dry contact ports are easy to use and allow you to make your own dry contact cables quickly. The DL47 is a completely embedded host. It is equipped with a TCP/IP stack, internal web Server, e-mail and Full SNMP functionality. The DL47 safeguards your infrastructure, resources and investment from external disaster before it happens.

Kenmerk
  • Fully embedded TCP / IP and Web Server
  • Built-in notification Suite
  • 8 autoSense ports for Pro sensors
  • Web-Based Interface for easy configuration and monitoring
  • Login for User and Administrator for increased security
  • Battery backed time of day clock for an accurate system date and time
  • A standalone product without any external hardware and software dependencies
  • Microcode firmware updates over the Internet
  • Customized color configuration for displaying alerts
  • Network Management System integration
  • An additional 60, 2 wire dry contact input ports are provided, giving a total of up to 68 dry contact ports
Specificatie
Inputs: x8 RJ-45 ports for connecting Pro sensors
  60, 2 Wire dry contacts. Input only up to 5VDC and up to 40VDC in opto isolated mode using internal jumper setting
Network Interface: Standard 100MB Full Duplex
  Ethernet RJ-45 Port
Status Indictors: LED indication for Power
  LED for Network Connectivity
  LED for sensor online and threshold status
Output: Configurable output signals (0VDC/5VDC) on any of the 8
  RJ-45 sensor ports
Operating temperature: Min. -35° C - Max.80° C
Operating humidity Min. 20% - Max. 80% (Non-Condensing)
Power Requirements: Voltage 7.0 - 9 V / >= 3 Amp
Power Consumption: 2.90 Watt, 0.32A
Dimension: 457mm x 127mm x 42mm (18" x 5" x 1.65") 1U Rack Mount Standard
Weight: 3.25 Kg
Goedkeuring: CE, RoHS en WEEE
Content
- DL47 Multifunctionele datalogger 8+60 in
- GB10 Gebruiksaanwijzing
Optie
- AA40 Opnemer beveiliging 1800cm
- AD40 Opnemer beveiliging 3000cm
- AV40 Opnemer beveiliging 450cm
- CA40 Opnemer droog contact 1800cm
- CD40 Opnemer droog contact 3000cm
- CV40 Opnemer droog contact 450cm
- HA40 Opnemer water 1800cm
- HD40 Opnemer water 3000cm
- HV40 Opnemer water 450cm
- KT40 Opn temp -40/123 & RV 0/100 30cm
- TT40 Opnemer temperatuur 30cm
