Detail

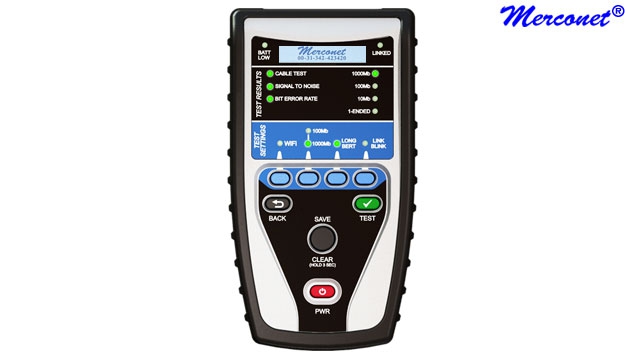

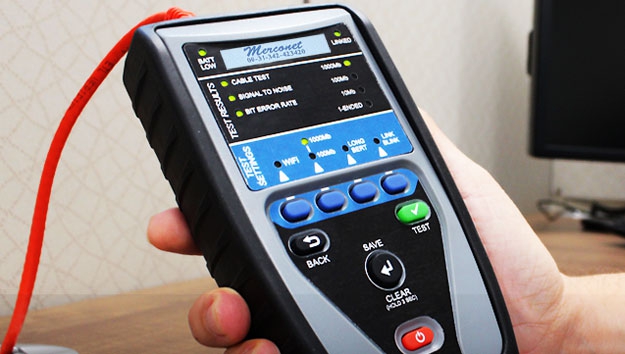

The AND7 set is for testing and measuring ethernet connections in order to determine the speed capability of individual CAT 5/6 links within installed LAN network systems. With the push of a button the AND7 set automatically measures key metrics like Signal to Noise Ratio and Skew as well as generating a Bit Error Rate Test (BERT) that data packets for transmission and receiving along a link to see both error generation and/or noise interference effects that may impede data flow at the highest possible level.
- All tests reports are sent via Wi-Fi in a spreadsheet format
- No interpretation needed
- On board Red and Green LEDs for instant clarity of speed conditions

Kenmerk

Wireless reporting via Wifi of results to mobile devices or laptops
1 unit to test basic features connectivity

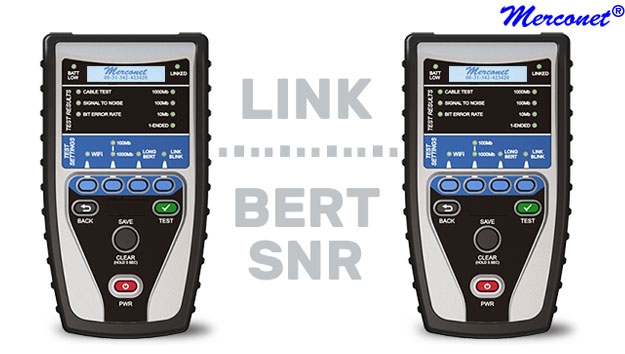

Two units to perform a GigTest to test data reliability of a link
BERT test with 2 units
Tests can be saved when not linked and uploaded to app when linked

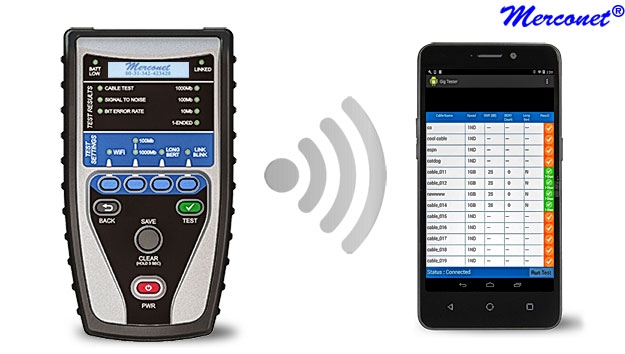

WiFi connectivity to Smart Phone for test reports
Android App for controlling, uploading in real time, naming and saving results
iOS (Apple) App for controlling, uploading in real time, naming and saving results.
Save up to 40 test results

Specificatie

Test reports
Number of reports:	40
Android App:	Yes
iOS (Apple) App:	Yes
Testing
One ended Cable Test:	Detects wiring issues or bad connections per TIA568 A/B
Linked Speed Indication:	Green/Red LEDs showing speed link rate at each level, IEEE 802-3
Skew Test:	Measures Time domain differences between pairs which can cause data errors, IEEE 802.3
Signal to Noise Ratio:	Detects and measures electronic noise, both ambient, alien and internally generated, per IEEE 802.3
Bit Error Rate Test (BERT):	Generating/receiving actual data packets at Gbit speed, receiving and measuring time and accuracy, per IEEE 802.3. Two units needed
Long BERT Mode - 10 times as long as a standard BERT test:	Generates sustained BERT packets to help detect spurious/impulse noise which can result in data error re-transmission effects
General specifications
Display:	LEDs - red and green
Connectors:	RJ45 Test Connector
	Micro USB
Battery Life:	6 pcs. AA alkaline batteries, 9VDC nominal,
	2,200 mA-hr (typical)
	Linked – 7 hrs typical,
	Not linked – 30 hrs typical
Operating altitude:	3048 meters
Operating temperature:	0 to 50 °C
Humidity:	10 to 90% non-condensing
Enclosure:	High Strength ABS V0 plastic with boot
Size:	4.7 x 9.15 x 17.3 cm
Weight:	510 grams
Goedkeuring:	CE, RoHS en WEEE

Prijs

1.548,80 € (1.280,00 € exclusief BTW) per stuk

Prijzen zijn per stuk, exclusief 21% BTW en gelden voor levering af magazijn Voorthuizen. Bij levering in Nederland of in België worden verzendkosten altijd in rekening gebracht tot maximaal EUR 25,00. Ditzelfde geldt voor expreskosten en/of rembourskosten. Bij de producten trainingen en cursussen is na het bevestigen van de cursusdatum, bij het niet verschijnen van de deelnemer(s), de verplichting ontstaan tot volledige betaling. Het volgen op een latere datum ingeval van niet verschijnen is in overleg mogelijk, maar wordt uitsluitend gezien als service. Hieruit kan geen enkel recht uit worden onttrokken.
